Grinding wheels often play a crucial role in workpiece machining. However, a series of common problems frequently arise during grinding, such as difficulty in grinding, grinding heat, chatter marks, scratches, burns, grinding accuracy issues, and workpiece surface roughness.
These problems not only affect machining quality and efficiency but also increase equipment repair, replacement, and maintenance costs. Therefore, identifying and resolving these issues is vital for both workpiece machining and business profitability.
This article will comprehensively introduce common problems encountered with grinding wheels during the grinding process and provide some optimization solutions to help readers better understand and resolve these issues.
When grinding a workpiece, the grinding wheel may fail to grind it, which may be related to the following factors:
The type, grit size, and hardness of the grinding wheel may not match the workpiece, resulting in poor cutting performance or failure to grind the surface.
2.Grinding Wheel Quality Issues
Problems with the grinding wheel's quality, such as poor balance or improper installation, can lead to unbalanced rotation and make grinding difficult.
3.Excessive Cutting Force
Excessive cutting force from the grinding wheel on the workpiece can degrade the workpiece's surface quality and increase friction between the workpiece and the grinding wheel, making it difficult to grind.
4.Improper Grinding Process Parameter Settings
Improper settings of grinding process parameters such as wheel speed and feed rate can lead to insufficient or excessive cutting force, making it difficult to grind the workpiece surface.
5.Improper Grinding Fluid Use
The effectiveness of grinding fluid significantly affects cutting ability and surface quality. Poor cooling, inadequate lubrication, or incorrect type of grinding fluid can all cause the grinding wheel to fail to grind the workpiece. In general, the inability of a grinding wheel to grind a workpiece may involve a variety of factors, requiring a combination of factors, including actual processing conditions, experience, and technical requirements, to identify and adjust key areas.
During the grinding process of a grinding wheel, grinding heat is mainly caused by the following factors:
1. Friction between the grinding wheel and the workpiece: High heat is generated during grinding due to friction between the grinding wheel and the workpiece.
2. Cutting force and grinding depth: Cutting force and grinding depth increase the contact area between the grinding wheel and the workpiece surface, thus increasing wear and friction and generating more heat.
3. Use of grinding fluid: The use of grinding fluid has a significant impact on grinding heat. Proper use of grinding fluid can reduce friction between the grinding wheel and the workpiece, effectively reducing grinding heat generation.
To address the grinding heat problem during grinding, the following measures can be taken:
Selecting and using suitable grinding wheels: Choosing the appropriate grinding wheel type, grit size, and hardness can effectively reduce grinding heat generation.
4. Controlling grinding depth and force: Reasonable control of grinding depth and force can reduce cutting force and grinding depth, thereby reducing grinding heat generation.
5. Use grinding fluid correctly: Using the right grinding fluid can maintain lubrication and cooling of the grinding wheel surface, reducing grinding heat generation.
6. Control the grinding wheel speed: This indirectly controls the motion state, reduces cutting force, and lowers grinding heat.
Observe and sense heat: Monitoring equipment such as thermal indicators and thermal imagers can help us promptly grasp the heat changes generated between the grinding wheel and the workpiece during grinding, allowing for timely adjustments and responses to abnormalities.
In summary, selecting appropriate grinding wheels, machining parameters, and using grinding fluid correctly can reduce the likelihood of grinding heat generation to a certain extent.
The causes of vibration marks during grinding with grinding wheels may include the following:
1. Imbalanced grinding wheel installation: Incorrectly balanced grinding wheel installation can lead to vibration marks.
2. Excessive feed rate: An excessively high feed rate results in excessive friction between the grinding wheel and the workpiece, causing thermal deformation and consequently vibration marks.
3. Mismatched grinding wheel grit size: Mismatched grit size can generate or accumulate grinding debris on the grinding wheel surface, leading to vibration marks.
4. Insufficient machine tool rigidity: Insufficient machine tool rigidity or an unstable machine tool placement can cause vibration, resulting in vibration marks during grinding.
Solutions to address vibration marks during grinding with grinding wheels include:
1. Process parameter adjustment: Properly adjusting the feed rate and grinding wheel speed reduces friction between the grinding wheel and the workpiece, minimizing thermal deformation during processing and thus reducing vibration marks.
2. Balanced grinding wheel assembly: Ensuring balanced grinding wheel assembly and minimizing eccentricity on both sides ensures stable rotation of the grinding wheel. 3. Optimization of Machine Tool Rigidity and Geometric Accuracy: Improving the rigidity and geometric accuracy of the machine tool reduces vibration interference, thereby reducing the likelihood of vibration marks.
4. Grinding Wheel Matching: Selecting appropriate grinding wheel type, grit size, hardness, etc., ensures the matching degree between the grinding wheel and the workpiece, which can reduce the possibility of vibration marks.
5. Regular Maintenance and Cleaning: Regularly cleaning and maintaining the machine tool and grinding wheel ensures their good condition, reduces the accumulation of carbon chips and foreign matter, and can effectively reduce the generation of vibration marks.
In summary, to avoid vibration mark problems during grinding, it is necessary to consider and optimize multiple aspects such as machining parameters, grinding wheels, and machine tools. Different problems require different adjustment methods.
during grinding can be caused by several factors:
1. Overly coarse grinding wheel grit: Grinding wheels with excessively coarse grit are prone to producing noticeable grinding marks and scratches during grinding, affecting the surface quality.
2. Uneven feed rate: Excessive or uneven feed rate causes the abrasive grains in the grinding wheel to pass through the surface of the workpiece, thus forming grinding marks.
3. Poor condition of the grinding wheel ribs: Cracks or wear in the grinding wheel ribs can cause pressure in a specific direction that leads to surface scratches during grinding.
4. Inappropriate grinding wheel type: Different types of grinding wheels have different grinding characteristics and applications. Choosing the wrong grinding wheel can lead to scratches.
Solutions to prevent scratches during grinding include:
1. Choosing the right grinding wheel: Selecting the appropriate type and grit of grinding wheel based on the material and precision requirements of the workpiece reduces the likelihood of scratches.
2. Timely inspection and replacement of grinding wheels: Regularly inspecting the assembly condition of the grinding wheel center and the integrity of the ribs, and promptly replacing damaged grinding wheels to ensure good grinding wheel condition.
3. Control feed rate and grinding force: Reasonably control the feed rate and grinding force to avoid excessive or uneven feed rates that could damage the material surface and cause scratches.
4. Clean the workpiece surface before machining: Thoroughly clean the workpiece surface before machining, especially removing burrs to avoid scratches and reduce damage from abrasive particles.
In summary, scratch problems require comprehensive consideration and solutions, including grinding wheel selection, machining parameter control, and inspection and maintenance of the grinding wheel's condition.
Attention should also be paid to surface preparation before machining and lubrication during machining.
Burns are a common surface defect in grinding processes, mainly caused by factors such as high temperature, high pressure, and friction. The causes may include:
1. Excessive cutting force of the grinding wheel: If the cutting force of the grinding wheel is too high, it may lead to excessive heat between the grinding wheel and the workpiece, causing burns.
2. Imbalanced grinding wheel installation: If the grinding wheel is unbalanced, it may cause vibration during rotation, leading to heat accumulation and burns.
3. Damaged grinding wheel surface: Damage to the grinding wheel surface or quality issues may lead to excessively high surface temperatures and poor adhesion, resulting in burns.
4. Improper use of grinding fluid: Improper use of grinding fluid, such as incorrect flow rate and temperature settings, may lead to excessively high surface temperatures, causing burns.
Solutions to prevent burns during grinding include:
1. Controlling feed rate and grinding force: Properly controlling the feed rate and grinding force can prevent excessively rapid or unstable feeds from causing sparks and heat concentration, which can lead to burns.
2. Install a balanced grinding wheel: Ensure the grinding wheel is balanced during installation, minimizing eccentricity to maintain stability during rotation and prevent heat buildup and burns caused by vibration.
3. Careful operation and inspection: Careful inspection and operation of the grinding process are essential. Address any problems promptly to prevent burns.
4. Use appropriate grinding fluid: Using suitable grinding fluid keeps the grinding wheel surface lubricated and cooled, maintaining a stable surface temperature and preventing burns.
In summary, burn problems require control and resolution from the perspectives of machining parameters, grinding wheel, machine tool, and grinding fluid. Appropriate solutions should be selected based on the specific circumstances.
The main factors affecting grinding accuracy include the following:
1. Machine Tool Accuracy: The accuracy and stability of the grinding machine play a decisive role in grinding accuracy.
This includes the flatness of the worktable, bearing clearance, transmission device, grinding wheel installation accuracy, and grinding wheel graduations.
2. Grinding Wheel Quality: Grinding wheel quality directly affects the surface roughness and accuracy of the ground surface.
Selecting a high-quality grinding wheel and suitable performance parameters can improve grinding accuracy while ensuring grinding wheel production quality.
3. Grinding Parameters: The settings of process parameters such as cutting force, cutting speed, feed rate, and grinding fluid usage directly affect the grinding effect, and thus the grinding accuracy.
4. Workpiece Properties: The material, size, shape, and surface condition of the workpiece. Defects and impurities in these factors can directly affect the grinding effect and machining accuracy.
Methods to Improve Grinding Accuracy:
1. Selecting Appropriate Grinding Conditions: During grinding, it's crucial to select appropriate processing parameters to avoid over- or under-grinding. Timely adjustment and optimization of grinding parameters ensure grinding quality and surface accuracy.
2. Quality Management: Regular inspection and maintenance of grinding wheels and machine tools are essential to ensure machine tool accuracy and proper installation.
Checking the grit fit and wheel profile of the selected grinding wheels reduces surface unevenness and guarantees grinding accuracy.
3. Selecting High-Quality Grinding Wheels: Choose high-quality grinding wheels, prioritizing those with high roundness and uniform surface thickness, ensuring they meet existing standards and requirements.
4. Employing Precision Testing Equipment: Use high-precision measuring equipment to inspect surface roughness and profile errors, promptly identifying grinding accuracy issues and taking timely measures to prevent customer complaints and quality problems.
5. Improving Grinding Operation Skills: Enhancing operator skills and standardizing operating procedures reduces individual worker differences, thereby improving the stability and reliability of grinding processes.
In summary, improving grinding accuracy requires comprehensive consideration of factors such as machine tool precision, grinding wheel quality, and grinding parameters, along with continuous optimization and adjustment.
Simultaneously, strengthening quality management, employing high-precision testing equipment, and training operators are also effective means to improve grinding accuracy.
Problems are unavoidable in the grinding process. However, with technological advancements and continuous optimization of machining methods, we can take a series of measures to solve these problems.
These include selecting suitable grinding wheels, adjusting appropriate cutting parameters, and optimizing the use of grinding fluid. These measures can help us improve grinding efficiency, reduce costs, and maximize machining quality.
YASHIDA 450I manual surface grinding machine

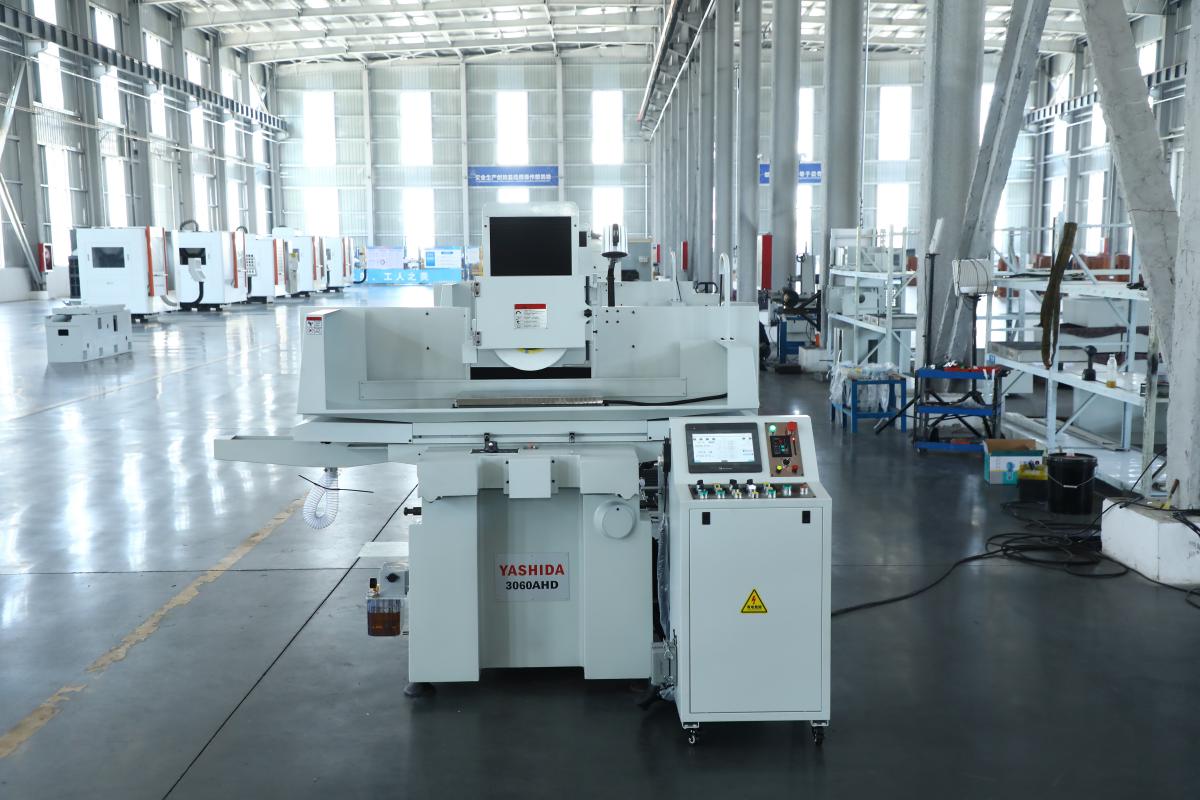

YASHIDA 3060AHD automatic surface grinding machine
